That's exactly what I did for Linux, but when we building something cross-platform it's more of all-or-none situation.

That was another one, so it'll be great if it can be captured by CI: https://github.com/microsoft/onnxruntime/issues/5024

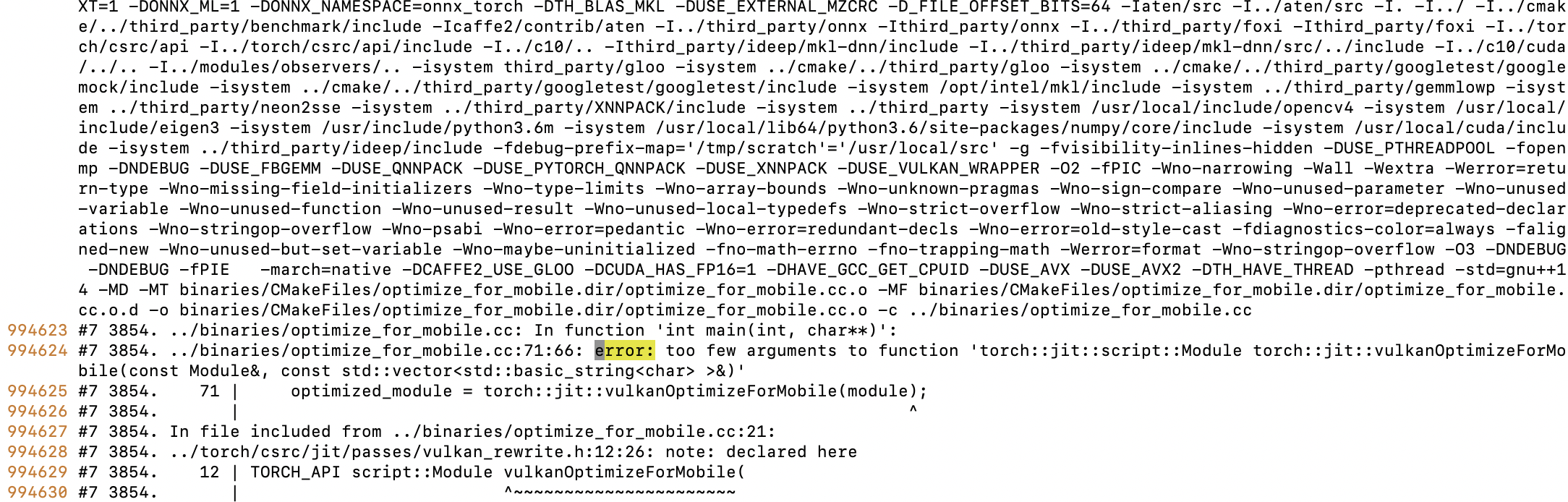

This is the build arg: https://github.com/xkszltl/Roaster/blob/14e68367389ad0b8fd809a48b4b70a76f183f89e/pkgs/ort.sh#L75-L135 Most of it should be irrelevant to this issue.

I uses ninja, maybe the generator is more sensitive than makefile.

@snnn This is an interesting one. Could you share more details about which symbol is not there? It will prevent us from falling into the same trap in the future.

Based on PEP571, manylinux2010 package should not relies on external openmp. Only glibc/libstdc++ are there, not even libstdc++fs. https://www.python.org/dev/peps/pep-0571/

So maybe you can simply ship libgomp in package and rpath to it? (But yes using distro stock lib is better if you ever what people to use the packaged lib outside python).

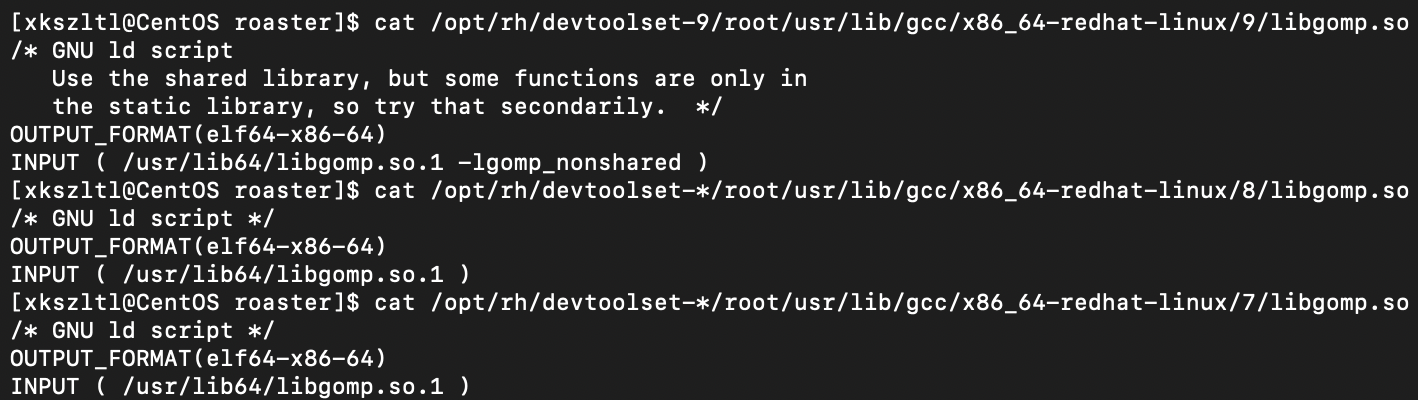

Besides, devtoolset-9 seems to suggest something different than previous versions. It has new symbols but in static lib for compatibility.

@gwang-msft FYI this PR breaks master build. https://github.com/microsoft/onnxruntime/commit/3a3f26f38e049eb0e8b9fbb97281a6e5dd82074f#commitcomment-42736525

Feature Request

We had a discussion with onnxruntime team: https://github.com/microsoft/onnxruntime/pull/5236 They're using onnx-ml.proto in multiple shared libs. This causes an porto re-registration issue when used together with shared protobuf. Currently our fix is to compile onnx-ml.proto as a shared lib to make sure it's loaded only once even through multiple shared lib. However, onnxruntime team mentioned since upstream ship it only as static lib, they prefer to keep it that way.

Do you think it is better to ship both static/shared version, and do you have any suggestion for our use case?

Feature Area

Which area in ONNX does this impact? (e.g. model usage, backend, best practices, converters, shape_inference, version_converter, training, test, operators): build/packaging

Meanwhile there's a hack to make it work in 3.18.3 without patching cmake. The issue is there's \. which should be \\. instead. Could you change this line to 3.1? https://github.com/pytorch/vision/blob/662373f6057bb0d39eaf6e5fde3083639ed93af3/CMakeLists.txt#L1

That will set CMP0053=New, which makes the \. recognizable as . (escaped .), and matches everything in regex, including a dot in version.

I tried their patch and works.

That's probably not the root cause. CMake side found their regex bug in 3.18.3.

FYI it's because you''re using google apis to get jquery.

Also filed the issue here in case it's caused by cmake bug: https://gitlab.kitware.com/cmake/cmake/-/issues/21223

Note pytorch was built just fine. Only torchvision has the issue.

🐛 Bug

This is a recent issue.

CMake Error at /usr/local/share/cmake-3.18/Modules/FindPython/Support.cmake:615 (if):
  Syntax error in cmake code at

    /usr/local/share/cmake-3.18/Modules/FindPython/Support.cmake:615

  when parsing string

    python${version_major}\.${version_minor}+([dmu]*)

  Invalid escape sequence \.
Call Stack (most recent call first):
  /usr/local/share/cmake-3.18/Modules/FindPython/Support.cmake:2756 (_python_get_version)
  /usr/local/share/cmake-3.18/Modules/FindPython3.cmake:389 (include)
  CMakeLists.txt:14 (find_package)


-- Configuring incomplete, errors occurred!

Given 3.18.3 is recently released (we use latest, was 3.18.2), we're not sure whether it's from torchvision or cmake.

Environment

• PyTorch / torchvision Version (e.g., 1.0 / 0.4.0): master/master
• OS (e.g., Linux): CentOS 7 / Ubuntu 18.04
• How you installed PyTorch / torchvision (conda, pip, source): source
• Build command you used (if compiling from source): cmake-3.18.3 + ninja + (gcc-9 from devtoolset-9/stock gcc-8)
• Python version: Distro stock python3.
• CUDA/cuDNN version: 11.0/8

Code path causing the link in unit test: https://github.com/microsoft/onnxruntime/blob/a90ab12589ce3d4a4323889a7bb77ea67b5e356a/cmake/onnxruntime_unittests.cmake#L436 https://github.com/microsoft/onnxruntime/blob/a90ab12589ce3d4a4323889a7bb77ea67b5e356a/cmake/onnxruntime_unittests.cmake#L550

For the segfault, so far I found:

• libonnxruntime_providers_tensorrt.so is in the link line of unit tests, added through ${onnxruntime_test_providers_libs}.
• Linking unit tests to libonnxruntime_providers_tensorrt.so causes segfault.
• trt is usable without linking unit test to libonnxruntime_providers_tensorrt.so. (Is it lazy loaded?)
• On Ubuntu+gcc8, readelf and ldd both shows there's no dependency to libonnxruntime_providers_tensorrt.so in the final executable (onnx_test_runner and onnxruntime_test_all) even it's in the link line. Probably there's nothing to resolve and the linker decide to ignore it.
• On CentOS+gcc9, it's in the dependency list and segfault. If I manually edit build.ninja to remove it from link command, it works.

If you think onnx_proto should be build as .so , then please tell ONNX team to do so in their official builds, not us.

Aha good to get some clarity on that. I used to think onnx and ort are handled by different teams, but keep hearing people refer to you as onnx team...

BTW if you plan to do something in onnx repo, I recommend to merge this first before you have solution ready.

What do you mean by "build in the same way"? BUILD_SHARED_LIBS is configurable in onnx repo, so it really up to the final user to decide how to set it.

Regarding "official package", I recommend dual build to ship both .so and .a together, so the decision can be made a link time of downstream. Regarding "official python package", usually python package should not have .a right?

I did some more experiments and found segfault is not limited to LTO. More specifically, I tried onnxruntime_test_all in the following combination of builds:

1. CentOS 7 + gcc 9 + CPU build, works.
2. CentOS 7 + gcc 9 + CUDA, works.
3. CentOS 7 + gcc 9 + CUDA&TRT, segfault.
4. Ubuntu 18.04 + gcc 8 + CUDA&TRT, works.
5. Ubuntu 18.04 + gcc 8 + LTO + CUDA&TRT, segfault.

BTW here's also a note in your own code... https://github.com/microsoft/onnxruntime/blob/1f69a58105f320e9b79008698b4275fa3f113f2d/cmake/onnx/CMakeLists.txt#L4

The crash in new() seems to be LTO-specific. onnx-ml issue has been fixed by that PR.

However it's failed in another place after the fix:

Here's gdb stacktrace.

root@9408698e9960:/tmp/scratch/onnxruntime/build# gdb -ex r -ex bt --args ./onnxruntime_test_all --gtest_filter=WhereOpTest.BasicNumeric
GNU gdb (Ubuntu 8.1-0ubuntu3.2) 8.1.0.20180409-git
Copyright (C) 2018 Free Software Foundation, Inc.
License GPLv3+: GNU GPL version 3 or later <http://gnu.org/licenses/gpl.html>
This is free software: you are free to change and redistribute it.
There is NO WARRANTY, to the extent permitted by law.  Type "show copying"
and "show warranty" for details.
This GDB was configured as "x86_64-linux-gnu".
Type "show configuration" for configuration details.
For bug reporting instructions, please see:
<http://www.gnu.org/software/gdb/bugs/>.
Find the GDB manual and other documentation resources online at:
<http://www.gnu.org/software/gdb/documentation/>.
For help, type "help".
Type "apropos word" to search for commands related to "word"...
Reading symbols from ./onnxruntime_test_all...done.
Starting program: /tmp/scratch/onnxruntime/build/onnxruntime_test_all --gtest_filter=WhereOpTest.BasicNumeric
[Thread debugging using libthread_db enabled]
Using host libthread_db library "/lib/x86_64-linux-gnu/libthread_db.so.1".
[New Thread 0x7fffd964c700 (LWP 17583)]
[New Thread 0x7fffd8e4b700 (LWP 17584)]
[New Thread 0x7fffd864a700 (LWP 17585)]
[New Thread 0x7fffd7e49700 (LWP 17586)]
[New Thread 0x7fffd7648700 (LWP 17587)]
[New Thread 0x7fffd6e47700 (LWP 17588)]
[New Thread 0x7fffd6646700 (LWP 17589)]
[New Thread 0x7fffd5e45700 (LWP 17590)]
[New Thread 0x7fffd5644700 (LWP 17591)]
[New Thread 0x7fffd4e43700 (LWP 17592)]
[New Thread 0x7fffd4642700 (LWP 17593)]
[New Thread 0x7fffd3e41700 (LWP 17594)]
[New Thread 0x7fffd3640700 (LWP 17595)]
[New Thread 0x7fffd2e3f700 (LWP 17596)]
[New Thread 0x7fffd263e700 (LWP 17597)]
[New Thread 0x7fffd1e3d700 (LWP 17598)]
[New Thread 0x7fffd163c700 (LWP 17599)]
[New Thread 0x7fffd0e3b700 (LWP 17600)]
[New Thread 0x7fffd063a700 (LWP 17601)]
[New Thread 0x7fffcfe39700 (LWP 17602)]
[New Thread 0x7fffcf638700 (LWP 17603)]
[New Thread 0x7fffcee37700 (LWP 17604)]
[New Thread 0x7fffce636700 (LWP 17605)]
[New Thread 0x7fffcde35700 (LWP 17606)]
[New Thread 0x7fffcd634700 (LWP 17607)]
[New Thread 0x7fffcce33700 (LWP 17608)]
[New Thread 0x7fffcc632700 (LWP 17609)]
[New Thread 0x7fffcbe31700 (LWP 17610)]
[New Thread 0x7fffcb630700 (LWP 17611)]
[New Thread 0x7fffcae2f700 (LWP 17612)]
[New Thread 0x7fffca62e700 (LWP 17613)]
[New Thread 0x7fffc9e2d700 (LWP 17614)]
[New Thread 0x7fffc962c700 (LWP 17615)]
[New Thread 0x7fffc8e2b700 (LWP 17616)]
[New Thread 0x7fff93fff700 (LWP 17617)]
[New Thread 0x7fff937fe700 (LWP 17618)]
[New Thread 0x7fff92ffd700 (LWP 17619)]
[New Thread 0x7fff927fc700 (LWP 17620)]
Note: Google Test filter = WhereOpTest.BasicNumeric
[==========] Running 1 test from 1 test suite.
[----------] Global test environment set-up.
[----------] 1 test from WhereOpTest
[ RUN      ] WhereOpTest.BasicNumeric
[New Thread 0x7fff90b48700 (LWP 17621)]
[New Thread 0x7fff8bfff700 (LWP 17622)]

Thread 1 "onnxruntime_tes" received signal SIGSEGV, Segmentation fault.
0x00007fff8a25deba in operator new (n=80) at ../onnxruntime/core/providers/shared_library/provider_bridge_provider.cc:48
48      void* operator new(size_t n) { return onnxruntime::g_host->HeapAllocate(n); }
#0  0x00007fff8a25deba in operator new (n=80) at ../onnxruntime/core/providers/shared_library/provider_bridge_provider.cc:48
#1  0x00007fff8a1e5469 in __gnu_cxx::new_allocator<std::__detail::_Hash_node<std::pair<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const, std::function<onnx2trt::ValueOrStatus<std::vector<onnx2trt::TensorOrWeights, std
::allocator<onnx2trt::TensorOrWeights> > > (onnx2trt::IImporterContext*, onnx::NodeProto const&, std::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> >&)> >, true> >::allocate(unsigned long, void const*) (
    this=<optimized out>, __n=<optimized out>, this=<optimized out>, __n=<optimized out>) at /usr/include/c++/8/ext/new_allocator.h:99
#2  std::allocator_traits<std::allocator<std::__detail::_Hash_node<std::pair<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const, std::function<onnx2trt::ValueOrStatus<std::vector<onnx2trt::TensorOrWeights, std::allocato
r<onnx2trt::TensorOrWeights> > > (onnx2trt::IImporterContext*, onnx::NodeProto const&, std::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> >&)> >, true> > >::allocate(std::allocator<std::__detail::_Hash_node<std::pair<std::__
cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const, std::function<onnx2trt::ValueOrStatus<std::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> > > (onnx2trt::IImporterContext*, onnx::NodeProto const
&, std::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> >&)> >, true> >&, unsigned long) (__a=..., __n=<optimized out>, __a=..., __n=<optimized out>) at /usr/include/c++/8/bits/alloc_traits.h:436
#3  std::__detail::_Hashtable_alloc<std::allocator<std::__detail::_Hash_node<std::pair<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const, std::function<onnx2trt::ValueOrStatus<std::vector<onnx2trt::TensorOrWeights, std
::allocator<onnx2trt::TensorOrWeights> > > (onnx2trt::IImporterContext*, onnx::NodeProto const&, std::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> >&)> >, true> > >::_M_allocate_node<std::pair<std::__cxx11::basic_string<cha
r, std::char_traits<char>, std::allocator<char> > const, std::function<onnx2trt::ValueOrStatus<std::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> > > (onnx2trt::IImporterContext*, onnx::NodeProto const&, std::vector<onnx2trt
::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> >&)> > >(std::pair<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const, std::function<onnx2trt::ValueOrStatus<std::vector<onnx2trt::TensorOrWeights, std::alloc
ator<onnx2trt::TensorOrWeights> > > (onnx2trt::IImporterContext*, onnx::NodeProto const&, std::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> >&)> >&&) (this=<optimized out>)
    at /usr/include/c++/8/bits/hashtable_policy.h:2088
#4  std::_Hashtable<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >, std::pair<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const, std::function<onnx2trt::ValueOrStatus<std::vector<onnx2t
rt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> > > (onnx2trt::IImporterContext*, onnx::NodeProto const&, std::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> >&)> >, std::allocator<std::pair<std::__cxx11::basic
_string<char, std::char_traits<char>, std::allocator<char> > const, std::function<onnx2trt::ValueOrStatus<std::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> > > (onnx2trt::IImporterContext*, onnx::NodeProto const&, std::vect
or<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> >&)> > >, std::__detail::_Select1st, std::equal_to<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > >, std::hash<std::__cxx11::basic_string<char, std::
char_traits<char>, std::allocator<char> > >, std::__detail::_Mod_range_hashing, std::__detail::_Default_ranged_hash, std::__detail::_Prime_rehash_policy, std::__detail::_Hashtable_traits<true, false, true> >::_M_emplace<std::pair<std::__cxx11::basic_stri
ng<char, std::char_traits<char>, std::allocator<char> > const, std::function<onnx2trt::ValueOrStatus<std::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> > > (onnx2trt::IImporterContext*, onnx::NodeProto const&, std::vector<on
nx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> >&)> > >(std::integral_constant<bool, true>, std::pair<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const, std::function<onnx2trt::ValueOrStatus<std::ve
ctor<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> > > (onnx2trt::IImporterContext*, onnx::NodeProto const&, std::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> >&)> >&&) (this=<optimized out>)
    at /usr/include/c++/8/bits/hashtable.h:1655
#5  std::__detail::_Insert<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >, std::pair<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const, std::function<onnx2trt::ValueOrStatus<std::vector
<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> > > (onnx2trt::IImporterContext*, onnx::NodeProto const&, std::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> >&)> >, std::allocator<std::pair<std::__cxx11
::basic_string<char, std::char_traits<char>, std::allocator<char> > const, std::function<onnx2trt::ValueOrStatus<std::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> > > (onnx2trt::IImporterContext*, onnx::NodeProto const&, st
d::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> >&)> > >, std::__detail::_Select1st, std::equal_to<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > >, std::hash<std::__cxx11::basic_string<char
, std::char_traits<char>, std::allocator<char> > >, std::__detail::_Mod_range_hashing, std::__detail::_Default_ranged_hash, std::__detail::_Prime_rehash_policy, std::__detail::_Hashtable_traits<true, false, true>, false>::insert<std::pair<std::__cxx11::b
asic_string<char, std::char_traits<char>, std::allocator<char> > const, std::function<onnx2trt::ValueOrStatus<std::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> > > (onnx2trt::IImporterContext*, onnx::NodeProto const&, std::
vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> >&)> >, void>(std::pair<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const, std::function<onnx2trt::ValueOrStatus<std::vector<onnx2trt::TensorO
rWeights, std::allocator<onnx2trt::TensorOrWeights> > > (onnx2trt::IImporterContext*, onnx::NodeProto const&, std::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> >&)> >&&) (__v=..., this=<optimized out>)
    at /usr/include/c++/8/bits/hashtable_policy.h:1015
#6  std::unordered_map<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >, std::function<onnx2trt::ValueOrStatus<std::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> > > (onnx2trt::IImporterContext
*, onnx::NodeProto const&, std::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> >&)>, std::hash<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > >, std::equal_to<std::__cxx11::basic_string<char,
std::char_traits<char>, std::allocator<char> > >, std::allocator<std::pair<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const, std::function<onnx2trt::ValueOrStatus<std::vector<onnx2trt::TensorOrWeights, std::allocator<
onnx2trt::TensorOrWeights> > > (onnx2trt::IImporterContext*, onnx::NodeProto const&, std::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> >&)> > > >::insert(std::pair<std::__cxx11::basic_string<char, std::char_traits<char>, st
d::allocator<char> > const, std::function<onnx2trt::ValueOrStatus<std::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> > > (onnx2trt::IImporterContext*, onnx::NodeProto const&, std::vector<onnx2trt::TensorOrWeights, std::alloc
ator<onnx2trt::TensorOrWeights> >&)> >&&) (__x=..., this=<optimized out>) at /usr/include/c++/8/bits/unordered_map.h:586
#7  onnx2trt::(anonymous namespace)::registerBuiltinOpImporter(std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >, std::function<onnx2trt::ValueOrStatus<std::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOr
Weights> > > (onnx2trt::IImporterContext*, onnx::NodeProto const&, std::vector<onnx2trt::TensorOrWeights, std::allocator<onnx2trt::TensorOrWeights> >&)> const&) [clone .lto_priv.415] () at ../cmake/external/onnx-tensorrt/builtin_op_importers.cpp:110
#8  0x00007fff8a1e1c2b in __static_initialization_and_destruction_0(int, int) [clone .constprop.17] () at ../cmake/external/onnx-tensorrt/builtin_op_importers.cpp:115
#9  0x00007fff8a1e187e in global constructors keyed to 65535_0_provider_bridge_provider.cc.o.75620 () at /usr/include/c++/8/ext/new_allocator.h:86
#10 0x00007ffff7de5783 in call_init (env=0x7fffffffe5c0, argv=0x7fffffffe5a8, argc=2, l=<optimized out>) at dl-init.c:72
#11 _dl_init (main_map=main_map@entry=0x55556241e370, argc=2, argv=0x7fffffffe5a8, env=0x7fffffffe5c0) at dl-init.c:119
#12 0x00007ffff7dea24f in dl_open_worker (a=a@entry=0x7fffffffcb00) at dl-open.c:522
#13 0x00007ffff0d0a51f in __GI__dl_catch_exception (exception=0x7fffffffcae0, operate=0x7ffff7de9e10 <dl_open_worker>, args=0x7fffffffcb00) at dl-error-skeleton.c:196
#14 0x00007ffff7de981a in _dl_open (file=0x55557ece1fe0 "libonnxruntime_providers_tensorrt.so", mode=-2147483646, caller_dlopen=
    0x555555980318 <onnxruntime::(anonymous namespace)::PosixEnv::LoadDynamicLibrary(std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const&, void**) const [clone .constprop.2530]+56>, nsid=<optimized out>, argc=2,
    argv=<optimized out>, env=0x7fffffffe5c0) at dl-open.c:605
#15 0x00007fffe5b5ff96 in dlopen_doit (a=a@entry=0x7fffffffcd30) at dlopen.c:66
#16 0x00007ffff0d0a51f in __GI__dl_catch_exception (exception=exception@entry=0x7fffffffccd0, operate=0x7fffe5b5ff40 <dlopen_doit>, args=0x7fffffffcd30) at dl-error-skeleton.c:196
#17 0x00007ffff0d0a5af in __GI__dl_catch_error (objname=0x55555e4ac510, errstring=0x55555e4ac518, mallocedp=0x55555e4ac508, operate=<optimized out>, args=<optimized out>) at dl-error-skeleton.c:215
#18 0x00007fffe5b60745 in _dlerror_run (operate=operate@entry=0x7fffe5b5ff40 <dlopen_doit>, args=args@entry=0x7fffffffcd30) at dlerror.c:162
#19 0x00007fffe5b60051 in __dlopen (file=<optimized out>, mode=<optimized out>) at dlopen.c:87
#20 0x0000555555980318 in onnxruntime::(anonymous namespace)::PosixEnv::LoadDynamicLibrary(std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const&, void**) const [clone .constprop.2530] ()
    at ../onnxruntime/core/platform/posix/env.cc:428
---Type <return> to continue, or q <return> to quit---
#21 0x0000555555b231c2 in onnxruntime::ProviderLibrary::ProviderLibrary(char const*) [clone .lto_priv.5979] () at ../onnxruntime/core/platform/posix/env.cc:181
#22 0x0000555555f617b7 in onnxruntime::test::DefaultTensorrtExecutionProvider() () at /usr/include/c++/8/bits/shared_ptr_base.h:1167
#23 0x00005555561a3f2f in onnxruntime::test::OpTester::Run(onnxruntime::SessionOptions, onnxruntime::test::OpTester::ExpectResult, std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const&, std::unordered_set<std::__cxx11::ba
sic_string<char, std::char_traits<char>, std::allocator<char> >, std::hash<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > >, std::equal_to<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > >,
 std::allocator<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > > > const&, OrtRunOptions const*, std::vector<std::unique_ptr<onnxruntime::IExecutionProvider, std::default_delete<onnxruntime::IExecutionProvider> >, std::al
locator<std::unique_ptr<onnxruntime::IExecutionProvider, std::default_delete<onnxruntime::IExecutionProvider> > > >*, std::function<void (std::vector<OrtValue, std::allocator<OrtValue> > const&, std::__cxx11::basic_string<char, std::char_traits<char>, st
d::allocator<char> > const&)> const&, onnxruntime::Graph::ResolveOptions const&) () at ../onnxruntime/test/providers/provider_test_utils.cc:814
#24 0x000055555599a222 in onnxruntime::test::OpTester::Run(onnxruntime::test::OpTester::ExpectResult, std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const&, std::unordered_set<std::__cxx11::basic_string<char, std::char_tr
aits<char>, std::allocator<char> >, std::hash<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > >, std::equal_to<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > >, std::allocator<std::__cxx11:
:basic_string<char, std::char_traits<char>, std::allocator<char> > > > const&, OrtRunOptions const*, std::vector<std::unique_ptr<onnxruntime::IExecutionProvider, std::default_delete<onnxruntime::IExecutionProvider> >, std::allocator<std::unique_ptr<onnxr
untime::IExecutionProvider, std::default_delete<onnxruntime::IExecutionProvider> > > >*, ExecutionMode, std::function<void (std::vector<OrtValue, std::allocator<OrtValue> > const&, std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<c
har> > const&)> const&, onnxruntime::Graph::ResolveOptions const&) [clone .constprop.2521] () at ../onnxruntime/test/providers/provider_test_utils.cc:659
#25 0x0000555555f56666 in void onnxruntime::test::(anonymous namespace)::WhereBasicNumericTest<float>() () at /usr/include/c++/8/ext/new_allocator.h:79
#26 0x00007fffe529e52a in testing::internal::HandleSehExceptionsInMethodIfSupported<testing::Test, void> (location=0x7fffe529f992 "the test body", method=<optimized out>, object=0x55555e445d60) at ../googletest/src/gtest.cc:2414
#27 testing::internal::HandleExceptionsInMethodIfSupported<testing::Test, void> (object=object@entry=0x55555e445d60, method=<optimized out>, location=location@entry=0x7fffe529f992 "the test body") at ../googletest/src/gtest.cc:2469
#28 0x00007fffe52943a3 in testing::Test::Run (this=0x55555e445d60) at ../googletest/src/gtest.cc:2508
#29 testing::Test::Run (this=0x55555e445d60) at ../googletest/src/gtest.cc:2498
#30 0x00007fffe5294505 in testing::TestInfo::Run (this=0x55555e08d9c0) at ../googletest/src/gtest.cc:2684
#31 testing::TestInfo::Run (this=0x55555e08d9c0) at ../googletest/src/gtest.cc:2657
#32 0x00007fffe52945e5 in testing::TestSuite::Run (this=0x55555e01a400) at ../googletest/src/gtest.cc:2816
#33 testing::TestSuite::Run (this=0x55555e01a400) at ../googletest/src/gtest.cc:2795
#34 0x00007fffe5294b03 in testing::internal::UnitTestImpl::RunAllTests() () at /usr/include/c++/8/bits/stl_vector.h:930
#35 0x00007fffe5294d21 in testing::internal::HandleSehExceptionsInMethodIfSupported<testing::internal::UnitTestImpl, bool> (location=0x7fffe52a1be0 "auxiliary test code (environments or event listeners)", method=<optimized out>, object=0x55555e01a510)
    at ../googletest/src/gtest.cc:2414
#36 testing::internal::HandleExceptionsInMethodIfSupported<testing::internal::UnitTestImpl, bool> (location=0x7fffe52a1be0 "auxiliary test code (environments or event listeners)",
    method=(bool (testing::internal::UnitTestImpl::*)(testing::internal::UnitTestImpl * const)) 0x7fffe5294680 <testing::internal::UnitTestImpl::RunAllTests()>, object=0x55555e01a510) at ../googletest/src/gtest.cc:2469
#37 testing::UnitTest::Run() () at ../googletest/src/gtest.cc:4925
#38 0x000055555590e6df in RUN_ALL_TESTS () at /usr/local/include/gtest/gtest.h:2473
#39 main (argc=<optimized out>, argv=<optimized out>) at ../onnxruntime/test/providers/test_main.cc:52
(gdb)

I've sent a PR for to build onnx-ml as .so. https://github.com/microsoft/onnxruntime/pull/5236

When tensorrt provider is moved to its own shared lib, static onnx-ml.pb.cc will causes duplicated descriptor_table_onnx_2fonnx_2dml_2eproto in both (main/provider) libs with re-registration.

If onnx-ml are compiled into to .so and loaded to the same address space, this issue is expected to happen.

I don't know how the default build script works. Maybe a special combination happen to shadow the issue.

If proto file need to be used in multiple .so linked together, it should be compiled into a separated .so to avoid re-registration.

Describe the bug

https://microsoft.github.io/onnxruntime/ This table doesn't work in China. It's not clickable. It's fine when visited from US.

It has been like this since the first time I found this page.

🐛 Bug

Build failed. This is a recent regression in the past few days.

This commit may be the reason: https://github.com/pytorch/pytorch/commit/e9941a5dd482e9e80d52edb1833ed9afca5c4557

Environment

• PyTorch Version (e.g., 1.0): master
• OS (e.g., Linux): CentOS 7
• How you installed PyTorch (conda, pip, source): source
• Build command you used (if compiling from source): cmake+ninja

Here's the proto loading symbols:

root@9408698e9960:/tmp/scratch/onnxruntime/build# for i in $(find . -name '*.so' -type f); do echo "$i"; readelf -a "$i" | grep descriptor_table_onnx_2fonnx_2dml_2eproto; done
./libcustom_op_library.so
./onnxruntime/capi/libonnxruntime_providers_shared.so
./onnxruntime/capi/libonnxruntime_providers_tensorrt.so
   117: 00000000000b5c50     8 OBJECT  LOCAL  DEFAULT    15 _ZL46descriptor_table_onnx_2fonnx_2dml_2eproto_deps
   118: 00000000002d8580   128 OBJECT  LOCAL  DEFAULT    21 _ZL46descriptor_table_onnx_2fonnx_2dml_2eproto_sccs
   119: 00000000002db280     4 OBJECT  LOCAL  DEFAULT    26 _ZL46descriptor_table_onnx_2fonnx_2dml_2eproto_once
  4881: 00000000002da8a0   120 OBJECT  LOCAL  DEFAULT    25 descriptor_table_onnx_2fonnx_2dml_2eproto
./onnxruntime/capi/onnxruntime_pybind11_state.so
   835: 0000000000a5c510     8 OBJECT  LOCAL  DEFAULT    15 _ZL46descriptor_table_onnx_2fonnx_2dml_2eproto_deps
   836: 00000000080663a0   128 OBJECT  LOCAL  DEFAULT    24 _ZL46descriptor_table_onnx_2fonnx_2dml_2eproto_sccs
   837: 000000000808b8a0     4 OBJECT  LOCAL  DEFAULT    30 _ZL46descriptor_table_onnx_2fonnx_2dml_2eproto_once
113800: 000000000808a680   120 OBJECT  LOCAL  DEFAULT    28 descriptor_table_onnx_2fonnx_2dml_2eproto
./onnxruntime/capi/libonnxruntime_providers_dnnl.so
./libonnxruntime_providers_shared.so
./libonnxruntime_providers_tensorrt.so
   117: 00000000000b5c50     8 OBJECT  LOCAL  DEFAULT    15 _ZL46descriptor_table_onnx_2fonnx_2dml_2eproto_deps
   118: 00000000002d8580   128 OBJECT  LOCAL  DEFAULT    21 _ZL46descriptor_table_onnx_2fonnx_2dml_2eproto_sccs
   119: 00000000002db280     4 OBJECT  LOCAL  DEFAULT    26 _ZL46descriptor_table_onnx_2fonnx_2dml_2eproto_once
  4881: 00000000002da8a0   120 OBJECT  LOCAL  DEFAULT    25 descriptor_table_onnx_2fonnx_2dml_2eproto
./onnxruntime_pybind11_state.so
   835: 0000000000a5c510     8 OBJECT  LOCAL  DEFAULT    15 _ZL46descriptor_table_onnx_2fonnx_2dml_2eproto_deps
   836: 00000000080663a0   128 OBJECT  LOCAL  DEFAULT    24 _ZL46descriptor_table_onnx_2fonnx_2dml_2eproto_sccs
   837: 000000000808b8a0     4 OBJECT  LOCAL  DEFAULT    30 _ZL46descriptor_table_onnx_2fonnx_2dml_2eproto_once
113800: 000000000808a680   120 OBJECT  LOCAL  DEFAULT    28 descriptor_table_onnx_2fonnx_2dml_2eproto
./libonnxruntime_providers_dnnl.so

As you can see they can only be found in libonnxruntime.so and libonnxruntime_providers_tensorrt.so. libonnxruntime_providers_tensorrt.so triggered the issue when it's loaded.

I think maybe the issue is not related to how protobuf is linked. If onnx-ml.proto.c is linked in multiple lib, probably it can trigger the error as well.

That doesn't work.

This error is due to libprotobuf.a (which is not compiled with -fPIC by default) used in shared lib.

FAILED: external/onnx-tensorrt/libnvonnxparser.so.7.1.0
: && /usr/bin/g++-8 -fPIC -fdebug-prefix-map='/tmp/scratch'='/usr/local/src' -g -march=haswell -mtune=generic -Wall -Wextra -ffunction-sections -fdata-sections -Wno-parentheses -Wno-unused-parameter -Wno-missing-field-initializers -Wall -Wno-deprecated-d
eclarations -Wno-unused-function -O3 -DNDEBUG -DGSL_UNENFORCED_ON_CONTRACT_VIOLATION -flto -fno-fat-lto-objects  -Xlinker --allow-shlib-undefined  -Wl,--version-script=/tmp/scratch/onnxruntime/cmake/external/onnx-tensorrt/libnvonnxparser.version -shared
-Wl,-soname,libnvonnxparser.so.7 -o external/onnx-tensorrt/libnvonnxparser.so.7.1.0 external/onnx-tensorrt/CMakeFiles/nvonnxparser.dir/NvOnnxParser.cpp.o external/onnx-tensorrt/CMakeFiles/nvonnxparser.dir/ModelImporter.cpp.o external/onnx-tensorrt/CMakeF
iles/nvonnxparser.dir/builtin_op_importers.cpp.o external/onnx-tensorrt/CMakeFiles/nvonnxparser.dir/onnx2trt_utils.cpp.o external/onnx-tensorrt/CMakeFiles/nvonnxparser.dir/ShapedWeights.cpp.o external/onnx-tensorrt/CMakeFiles/nvonnxparser.dir/ShapeTensor
.cpp.o external/onnx-tensorrt/CMakeFiles/nvonnxparser.dir/LoopHelpers.cpp.o external/onnx-tensorrt/CMakeFiles/nvonnxparser.dir/RNNHelpers.cpp.o external/onnx-tensorrt/CMakeFiles/nvonnxparser.dir/OnnxAttrs.cpp.o -L/tmp/scratch/onnxruntime/build/dnnl/insta
ll/lib -Wl,-rpath,/tmp/scratch/onnxruntime/build/dnnl/install/lib:  external/onnx/libonnx_proto.a  /usr/lib/x86_64-linux-gnu/libprotobuf.a  /usr/lib/x86_64-linux-gnu/libnvinfer.so  /usr/lib/x86_64-linux-gnu/libnvinfer_plugin.so  /usr/lib/x86_64-linux-gnu
/libmyelin.so  /usr/lib/x86_64-linux-gnu/libprotobuf.a  -lpthread && :
/usr/bin/ld: /usr/lib/x86_64-linux-gnu/libprotobuf.a(arena.o): relocation R_X86_64_TPOFF32 against symbol `_ZN6google8protobuf5Arena13thread_cache_E' can not be used when making a shared object; recompile with -fPIC
/usr/bin/ld: final link failed: Nonrepresentable section on output
collect2: error: ld returned 1 exit status

This one I'm not sure:

FAILED: external/onnx-tensorrt/getSupportedAPITest
: && /usr/bin/g++-8 -fdebug-prefix-map='/tmp/scratch'='/usr/local/src' -g -march=haswell -mtune=generic -Wall -Wextra -ffunction-sections -fdata-sections -Wno-parentheses -Wno-unused-parameter -Wno-missing-field-initializers -Wall -Wno-deprecated-declara
tions -Wno-unused-function -O3 -DNDEBUG -DGSL_UNENFORCED_ON_CONTRACT_VIOLATION -flto -fno-fat-lto-objects -Xlinker --allow-shlib-undefined external/onnx-tensorrt/CMakeFiles/getSupportedAPITest.dir/getSupportedAPITest.cpp.o external/onnx-tensorrt/CMakeFil
es/getSupportedAPITest.dir/ModelImporter.cpp.o -o external/onnx-tensorrt/getSupportedAPITest -L/tmp/scratch/onnxruntime/build/dnnl/install/lib -Wl,-rpath,/tmp/scratch/onnxruntime/build/dnnl/install/lib  /usr/lib/x86_64-linux-gnu/libprotobuf.a  external/o
nnx-tensorrt/libnvonnxparser_static.a  -lpthread  -ldl  external/onnx/libonnx_proto.a  /usr/lib/x86_64-linux-gnu/libprotobuf.a  -lpthread  /usr/lib/x86_64-linux-gnu/libprotobuf.a  /usr/lib/x86_64-linux-gnu/libnvinfer.so  /usr/lib/x86_64-linux-gnu/libnvin
fer_plugin.so  /usr/lib/x86_64-linux-gnu/libmyelin.so && :
../cmake/external/onnx-tensorrt/ModelImporter.cpp: In function 'importInputs.constprop':
../cmake/external/onnx-tensorrt/ModelImporter.cpp:250:20: warning: 'tensor_ptr' may be used uninitialized in this function [-Wmaybe-uninitialized]
             tensor = tensor_ptr;
                    ^
../cmake/external/onnx-tensorrt/ModelImporter.cpp:248:32: note: 'tensor_ptr' was declared here
             nvinfer1::ITensor* tensor_ptr;
                                ^
/tmp/ccztaPj9.ltrans0.ltrans.o: In function `global constructors keyed to 65535_0_getSupportedAPITest.cpp.o.56367':
<artificial>:(.text.startup._GLOBAL__I_65535_0_getSupportedAPITest.cpp.o.56367+0x32): undefined reference to `google::protobuf::internal::AddDescriptors(google::protobuf::internal::DescriptorTable const*)'
/usr/bin/ld: Dwarf Error: Invalid abstract instance DIE ref.
/tmp/ccztaPj9.ltrans0.ltrans.o: In function `google::protobuf::internal::ArenaStringPtr::DestroyNoArena(std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const*) [clone .isra.234] [clone .constprop.128]':
<artificial>:(.text._ZN6google8protobuf8internal14ArenaStringPtr14DestroyNoArenaEPKNSt7__cxx1112basic_stringIcSt11char_traitsIcESaIcEEE.isra.234.constprop.128+0x3): undefined reference to `google::protobuf::internal::fixed_address_empty_string[abi:cxx11]
'
/tmp/ccztaPj9.ltrans0.ltrans.o: In function `google::protobuf::internal::ArenaStringPtr::Set(std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > const*, std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<c
har> > const&, google::protobuf::Arena*) [clone .constprop.125]':
<artificial>:(.text._ZN6google8protobuf8internal14ArenaStringPtr3SetEPKNSt7__cxx1112basic_stringIcSt11char_traitsIcESaIcEEERS9_PNS0_5ArenaE.constprop.125+0x9): undefined reference to `google::protobuf::internal::fixed_address_empty_string[abi:cxx11]'
/tmp/ccztaPj9.ltrans0.ltrans.o: In function `onnx2trt::deserialize_onnx_model(void const*, unsigned long, bool, onnx::ModelProto*) [clone .constprop.70]':
<artificial>:(.text._ZN8onnx2trt22deserialize_onnx_modelEPKvmbPN4onnx10ModelProtoE.constprop.70+0x9a): undefined reference to `google::protobuf::io::CodedInputStream::SetTotalBytesLimit(int)'
/tmp/ccztaPj9.ltrans0.ltrans.o: In function `onnx2trt::importInputs(onnx2trt::ImporterContext*, onnx::GraphProto const&, std::unordered_map<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> >, onnx2trt::TensorOrWeights, std::h
ash<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > >, std::equal_to<std::__cxx11::basic_string<char, std::char_traits<char>, std::allocator<char> > >, std::allocator<std::pair<std::__cxx11::basic_string<char, std::char_tr
aits<char>, std::allocator<char> > const, onnx2trt::TensorOrWeights> > >*, unsigned int, onnxTensorDescriptorV1 const*) [clone .constprop.74]':
<artificial>:(.text._ZN8onnx2trt12importInputsEPNS_15ImporterContextERKN4onnx10GraphProtoEPSt13unordered_mapINSt7__cxx1112basic_stringIcSt11char_traitsIcESaIcEEENS_15TensorOrWeightsESt4hashISC_ESt8equal_toISC_ESaISt4pairIKSC_SD_EEEjPK22onnxTensorDescript
orV1.constprop.74+0xf5e): undefined reference to `google::protobuf::internal::fixed_address_empty_string[abi:cxx11]'
/usr/bin/ld: Dwarf Error: Invalid abstract instance DIE ref.
/tmp/ccztaPj9.ltrans1.ltrans.o: In function `onnx::OperatorSetIdProto::GetMetadata() const':
<artificial>:(.text._ZNK4onnx18OperatorSetIdProto11GetMetadataEv+0xe): undefined reference to `google::protobuf::internal::AssignDescriptors(google::protobuf::internal::DescriptorTable const*, bool)'
/tmp/ccztaPj9.ltrans1.ltrans.o: In function `void google::protobuf::internal::RepeatedPtrFieldBase::Destroy<google::protobuf::RepeatedPtrField<onnx::OperatorSetIdProto>::TypeHandler>() [clone .isra.269] [clone .lto_priv.318]':
<artificial>:(.text.unlikely._ZN6google8protobuf8internal20RepeatedPtrFieldBase7DestroyINS0_16RepeatedPtrFieldIN4onnx18OperatorSetIdProtoEE11TypeHandlerEEEvv.isra.269.lto_priv.318+0x5a): undefined reference to `google::protobuf::internal::fixed_address_e
mpty_string[abi:cxx11]'
/tmp/ccztaPj9.ltrans1.ltrans.o: In function `void google::protobuf::internal::RepeatedPtrFieldBase::Destroy<google::protobuf::RepeatedPtrField<onnx::ValueInfoProto>::TypeHandler>() [clone .isra.256] [clone .lto_priv.320]':
<artificial>:(.text._ZN6google8protobuf8internal20RepeatedPtrFieldBase7DestroyINS0_16RepeatedPtrFieldIN4onnx14ValueInfoProtoEE11TypeHandlerEEEvv.isra.256.lto_priv.320+0x60): undefined reference to `google::protobuf::internal::fixed_address_empty_string[a
bi:cxx11]'
/tmp/ccztaPj9.ltrans1.ltrans.o: In function `void google::protobuf::internal::RepeatedPtrFieldBase::Destroy<google::protobuf::RepeatedPtrField<onnx::TensorShapeProto_Dimension>::TypeHandler>() [clone .isra.254] [clone .lto_priv.313]':
<artificial>:(.text.unlikely._ZN6google8protobuf8internal20RepeatedPtrFieldBase7DestroyINS0_16RepeatedPtrFieldIN4onnx26TensorShapeProto_DimensionEE11TypeHandlerEEEvv.isra.254.lto_priv.313+0x2f): undefined reference to `google::protobuf::internal::fixed_a
ddress_empty_string[abi:cxx11]'
/tmp/ccztaPj9.ltrans1.ltrans.o: In function `void google::protobuf::internal::RepeatedPtrFieldBase::Destroy<google::protobuf::RepeatedPtrField<onnx::SparseTensorProto>::TypeHandler>() [clone .isra.253] [clone .lto_priv.321]':
<artificial>:(.text._ZN6google8protobuf8internal20RepeatedPtrFieldBase7DestroyINS0_16RepeatedPtrFieldIN4onnx17SparseTensorProtoEE11TypeHandlerEEEvv.isra.253.lto_priv.321+0xe8): undefined reference to `google::protobuf::RepeatedField<long>::~RepeatedField
()'
/tmp/ccztaPj9.ltrans1.ltrans.o: In function `void google::protobuf::internal::RepeatedPtrFieldBase::Destroy<google::protobuf::RepeatedPtrField<onnx::StringStringEntryProto>::TypeHandler>() [clone .isra.247] [clone .lto_priv.319]':
<artificial>:(.text._ZN6google8protobuf8internal20RepeatedPtrFieldBase7DestroyINS0_16RepeatedPtrFieldIN4onnx22StringStringEntryProtoEE11TypeHandlerEEEvv.isra.247.lto_priv.319+0x60): undefined reference to `google::protobuf::internal::fixed_address_empty_
string[abi:cxx11]'
/tmp/ccztaPj9.ltrans1.ltrans.o: In function `void google::protobuf::internal::RepeatedPtrFieldBase::Destroy<google::protobuf::RepeatedPtrField<onnx::TensorAnnotation>::TypeHandler>() [clone .isra.251] [clone .lto_priv.317]':
<artificial>:(.text.unlikely._ZN6google8protobuf8internal20RepeatedPtrFieldBase7DestroyINS0_16RepeatedPtrFieldIN4onnx16TensorAnnotationEE11TypeHandlerEEEvv.isra.251.lto_priv.317+0x5e): undefined reference to `google::protobuf::internal::fixed_address_emp
ty_string[abi:cxx11]'

What's the reason of enforcing protobuf_USE_STATIC_LIBS=ON with system protobuf? I thought it's to avoid extra deps when delivery (but we ship our protobuf as well) so I bypassed that check.

On Sun, Sep 20, 2020 at 1:27 PM Pranav Sharma [email protected] wrote:

@xkszltl https://github.com/xkszltl I believe you're using the onnxruntime_PREFER_SYSTEM_LIB cmake option to build ORT. This option is experimental in that we don't support it fully. Moreover, if onnxruntime_PREFER_SYSTEM_LIB and onnxruntime_USE_FULL_PROTOBUF are ON, then protobuf_USE_STATIC_LIBS must be turned ON too.

— You are receiving this because you were mentioned. Reply to this email directly, view it on GitHub https://github.com/microsoft/onnxruntime/issues/5035#issuecomment-695747475, or unsubscribe https://github.com/notifications/unsubscribe-auth/ABHWIUOYCBTTVKNFVHNPHMLSGWHDFANCNFSM4QTYJWNQ .

-- From LTL

Any progress on this? Seems the issue is still there.

Describe the bug

Cannot install after build. This is for master, 1.4.0 is fine.

#9 921.2 -- Installing: /tmp/scratch/onnxruntime/install.KvPcvqvz6E/root/usr/local/include/onnxruntime/core/providers/cpu
#9 921.2 -- Installing: /tmp/scratch/onnxruntime/install.KvPcvqvz6E/root/usr/local/include/onnxruntime/core/providers/cpu/cpu_provider_factory.h
#9 921.2 -- Installing: /tmp/scratch/onnxruntime/install.KvPcvqvz6E/root/usr/local/include/onnxruntime/core/providers/cuda
#9 921.2 -- Installing: /tmp/scratch/onnxruntime/install.KvPcvqvz6E/root/usr/local/include/onnxruntime/core/providers/cuda/cuda_provider_factory.h
#9 921.2 CMake Error at cmake_install.cmake:66 (file):
#9 921.2   file INSTALL cannot find
#9 921.2   "/tmp/scratch/onnxruntime/cmake/../include/onnxruntime/core/providers/shared":
#9 921.2   No such file or directory.
#9 921.2
#9 921.2
#9 921.2 FAILED: CMakeFiles/install.util
#9 921.2 cd /tmp/scratch/onnxruntime/build && /usr/local/bin/cmake -P cmake_install.cmake
#9 921.2 ninja: build stopped: subcommand failed.

This is probably the cause: https://github.com/microsoft/onnxruntime/blob/7ca8388dc98cbc23c7c165064bca6b3142d28d79/cmake/onnxruntime_providers.cmake#L296

System information

• OS Platform and Distribution (e.g., Linux Ubuntu 16.04): CentOS 7
• ONNX Runtime installed from (source or binary): source
• ONNX Runtime version: master
• GCC/Compiler version (if compiling from source): gcc-8
• CUDA/cuDNN version: 11.0/8

Issue has been fixed.

Seems the decision is to keep only 3.7? AFAIK the difference between 3.5 and 3.7 is only a few registers, and 3.5 should be compatible with 3.7, but not the other way. So if no noticeable perf difference, maybe keeping 3.5 is better than 3.7?

This is just general suggestion, not a request, as we enable all of them in our build anyway.

Describe the bug

We got a lot of header-not-found errors when building with TensorRT on Windows. It works fine with just CUDA.

Here's the cmake arg for successful build: https://github.com/xkszltl/Roaster/blob/ca52bfccd4c49b2bcbe9526e2f0473ea810a5f48/win/pkgs/ort.ps1#L150-L190 It'll fail if I set -Donnxruntime_USE_TENSORRT=ON.

Microsoft (R) Build Engine version 16.6.0+5ff7b0c9e for .NET Framework
Copyright (C) Microsoft Corporation. All rights reserved.

  Checking File Globs
  Performing update step for 'project_dnnl'
  No patch step for 'project_dnnl'
  Performing configure step for 'project_dnnl'
  -- GPU support is disabled
  -- Could NOT find Doxygen (missing: DOXYGEN_EXECUTABLE)
  -- Configuring done
  -- Generating done
  -- Build files have been written to: D:/roaster-scratch/onnxruntime/build/dnnl/src/project_dnnl-build
  Performing build step for 'project_dnnl'
  Microsoft (R) Build Engine version 16.6.0+5ff7b0c9e for .NET Framework
  Copyright (C) Microsoft Corporation. All rights reserved.

    Checking Build System
    dnnl_common.vcxproj -> D:\roaster-scratch\onnxruntime\build\dnnl\src\project_dnnl-build\src\common\dnnl_common.dir\Release\dnnl_common.lib
    dnnl_cpu.vcxproj -> D:\roaster-scratch\onnxruntime\build\dnnl\src\project_dnnl-build\src\cpu\dnnl_cpu.dir\Release\dnnl_cpu.lib
    dnnl.vcxproj -> D:\roaster-scratch\onnxruntime\build\dnnl\src\project_dnnl-build\src\Release\dnnl.dll
    Building Custom Rule D:/roaster-scratch/onnxruntime/build/dnnl/src/dnnl/src/CMakeLists.txt
  Performing install step for 'project_dnnl'
  Microsoft (R) Build Engine version 16.6.0+5ff7b0c9e for .NET Framework
  Copyright (C) Microsoft Corporation. All rights reserved.

    dnnl_common.vcxproj -> D:\roaster-scratch\onnxruntime\build\dnnl\src\project_dnnl-build\src\common\dnnl_common.dir\Release\dnnl_common.lib
    dnnl_cpu.vcxproj -> D:\roaster-scratch\onnxruntime\build\dnnl\src\project_dnnl-build\src\cpu\dnnl_cpu.dir\Release\dnnl_cpu.lib
    dnnl.vcxproj -> D:\roaster-scratch\onnxruntime\build\dnnl\src\project_dnnl-build\src\Release\dnnl.dll
    -- Install configuration: "Release"
    -- Up-to-date: D:/roaster-scratch/onnxruntime/build/dnnl/install/share/doc/dnnl/LICENSE
    -- Up-to-date: D:/roaster-scratch/onnxruntime/build/dnnl/install/lib/dnnl.lib
    -- Up-to-date: D:/roaster-scratch/onnxruntime/build/dnnl/install/bin/dnnl.dll
    -- Up-to-date: D:/roaster-scratch/onnxruntime/build/dnnl/install/include/dnnl.h
    -- Up-to-date: D:/roaster-scratch/onnxruntime/build/dnnl/install/include/dnnl.hpp
    -- Up-to-date: D:/roaster-scratch/onnxruntime/build/dnnl/install/include/dnnl_debug.h
    -- Up-to-date: D:/roaster-scratch/onnxruntime/build/dnnl/install/include/dnnl_types.h
    -- Up-to-date: D:/roaster-scratch/onnxruntime/build/dnnl/install/include/mkldnn.h
    -- Up-to-date: D:/roaster-scratch/onnxruntime/build/dnnl/install/include/mkldnn.hpp
    -- Up-to-date: D:/roaster-scratch/onnxruntime/build/dnnl/install/include/mkldnn_config.h
    -- Up-to-date: D:/roaster-scratch/onnxruntime/build/dnnl/install/include/mkldnn_debug.h
    -- Up-to-date: D:/roaster-scratch/onnxruntime/build/dnnl/install/include/mkldnn_dnnl_mangling.h
    -- Up-to-date: D:/roaster-scratch/onnxruntime/build/dnnl/install/include/mkldnn_types.h
    -- Up-to-date: D:/roaster-scratch/onnxruntime/build/dnnl/install/include/mkldnn_version.h
    -- Up-to-date: D:/roaster-scratch/onnxruntime/build/dnnl/install/include/dnnl_config.h
    -- Up-to-date: D:/roaster-scratch/onnxruntime/build/dnnl/install/include/dnnl_version.h
    -- Up-to-date: D:/roaster-scratch/onnxruntime/build/dnnl/install/lib/cmake/dnnl/dnnl-config.cmake
    -- Up-to-date: D:/roaster-scratch/onnxruntime/build/dnnl/install/lib/cmake/dnnl/dnnl-config-version.cmake
    -- Up-to-date: D:/roaster-scratch/onnxruntime/build/dnnl/install/lib/cmake/dnnl/dnnl-targets.cmake
    -- Installing: D:/roaster-scratch/onnxruntime/build/dnnl/install/lib/cmake/dnnl/dnnl-targets-release.cmake
    -- Installing: D:/roaster-scratch/onnxruntime/build/dnnl/install/lib/mkldnn.lib
  Completed 'project_dnnl'
  Performing update step for 'pybind11'
  No patch step for 'pybind11'
  No configure step for 'pybind11'
  No build step for 'pybind11'
  No install step for 'pybind11'
  Completed 'pybind11'
  libprotobuf.vcxproj -> D:\roaster-scratch\onnxruntime\build\external\protobuf\cmake\Release\libprotobuf.lib
  libprotoc.vcxproj -> D:\roaster-scratch\onnxruntime\build\external\protobuf\cmake\Release\libprotoc.lib
  protoc.vcxproj -> D:\roaster-scratch\onnxruntime\build\external\protobuf\cmake\Release\protoc.exe
  onnx_proto.vcxproj -> D:\roaster-scratch\onnxruntime\build\onnx\Release\onnx_proto.lib
  NvOnnxParser.cpp
  ModelImporter.cpp
  builtin_op_importers.cpp
  onnx2trt_utils.cpp
  ShapedWeights.cpp
  ShapeTensor.cpp
  OnnxAttrs.cpp
D:\roaster-scratch\onnxruntime\cmake\external\onnx-tensorrt\NvOnnxParser.h(26,10): fatal error C1083: Cannot open include file: 'NvInfer.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\cmake\external\onnx-tensorrt\NvOnnxParser.cpp) [D:\roaster-scratch\onnxruntime\build\external\onnx-tensorrt\nvonnxparser_static.vcxproj]
D:\roaster-scratch\onnxruntime\cmake\external\onnx-tensorrt\NvOnnxParser.h(26,10): fatal error C1083: Cannot open include file: 'NvInfer.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\cmake\external\onnx-tensorrt\ModelImporter.cpp) [D:\roaster-scratch\onnxruntime\build\external\onnx-tensorrt\nvonnxparser_static.vcxproj]
D:\roaster-scratch\onnxruntime\cmake\external\onnx-tensorrt\NvOnnxParser.h(26,10): fatal error C1083: Cannot open include file: 'NvInfer.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\cmake\external\onnx-tensorrt\builtin_op_importers.cpp) [D:\roaster-scratch\onnxruntime\build\external\onnx-tensorrt\nvonnxparser_static.vcxproj]
D:\roaster-scratch\onnxruntime\cmake\external\onnx-tensorrt\ShapedWeights.hpp(25,10): fatal error C1083: Cannot open include file: 'NvInfer.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\cmake\external\onnx-tensorrt\onnx2trt_utils.cpp) [D:\roaster-scratch\onnxruntime\build\external\onnx-tensorrt\nvonnxparser_static.vcxproj]
D:\roaster-scratch\onnxruntime\cmake\external\onnx-tensorrt\ShapedWeights.hpp(25,10): fatal error C1083: Cannot open include file: 'NvInfer.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\cmake\external\onnx-tensorrt\ShapedWeights.cpp) [D:\roaster-scratch\onnxruntime\build\external\onnx-tensorrt\nvonnxparser_static.vcxproj]
D:\roaster-scratch\onnxruntime\cmake\external\onnx-tensorrt\ShapeTensor.hpp(25,10): fatal error C1083: Cannot open include file: 'NvInfer.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\cmake\external\onnx-tensorrt\ShapeTensor.cpp) [D:\roaster-scratch\onnxruntime\build\external\onnx-tensorrt\nvonnxparser_static.vcxproj]
D:\roaster-scratch\onnxruntime\cmake\external\onnx-tensorrt\OnnxAttrs.hpp(25,10): fatal error C1083: Cannot open include file: 'NvInfer.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\cmake\external\onnx-tensorrt\OnnxAttrs.cpp) [D:\roaster-scratch\onnxruntime\build\external\onnx-tensorrt\nvonnxparser_static.vcxproj]
  onnx.vcxproj -> D:\roaster-scratch\onnxruntime\build\onnx\Release\onnx.lib
  onnxruntime_common.vcxproj -> D:\roaster-scratch\onnxruntime\build\Release\onnxruntime_common.lib
  onnxruntime_framework.vcxproj -> D:\roaster-scratch\onnxruntime\build\Release\onnxruntime_framework.lib
  onnxruntime_graph.vcxproj -> D:\roaster-scratch\onnxruntime\build\Release\onnxruntime_graph.lib
  pyop.cc
D:\roaster-scratch\onnxruntime\onnxruntime\core\language_interop_ops\pyop\pyop.h(2,10): fatal error C1083: Cannot open include file: 'core/platform/env.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_pyop.vcxproj]
  platform.cpp
D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\mlasi.h(20,10): fatal error C1083: Cannot open include file: 'mlas.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\platform.cpp) [D:\roaster-scratch\onnxruntime\build\onnxruntime_mlas.vcxproj]
  threading.cpp
  dgemm.cpp
  sgemm.cpp
  qgemm.cpp
  convolve.cpp
  pooling.cpp
  reorder.cpp
  snchwc.cpp
  activate.cpp
  logistic.cpp
  tanh.cpp
  erf.cpp
  compute.cpp
  quantize.cpp
  qladd.cpp
  qladd_avx2.cpp
D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\mlasi.h(20,10): fatal error C1083: Cannot open include file: 'mlas.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\threading.cpp) [D:\roaster-scratch\onnxruntime\build\onnxruntime_mlas.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\mlasi.h(20,10): fatal error C1083: Cannot open include file: 'mlas.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\dgemm.cpp) [D:\roaster-scratch\onnxruntime\build\onnxruntime_mlas.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\mlasi.h(20,10): fatal error C1083: Cannot open include file: 'mlas.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\sgemm.cpp) [D:\roaster-scratch\onnxruntime\build\onnxruntime_mlas.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\mlasi.h(20,10): fatal error C1083: Cannot open include file: 'mlas.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\convolve.cpp) [D:\roaster-scratch\onnxruntime\build\onnxruntime_mlas.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\mlasi.h(20,10): fatal error C1083: Cannot open include file: 'mlas.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\qgemm.cpp) [D:\roaster-scratch\onnxruntime\build\onnxruntime_mlas.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\mlasi.h(20,10): fatal error C1083: Cannot open include file: 'mlas.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\pooling.cpp) [D:\roaster-scratch\onnxruntime\build\onnxruntime_mlas.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\mlasi.h(20,10): fatal error C1083: Cannot open include file: 'mlas.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\reorder.cpp) [D:\roaster-scratch\onnxruntime\build\onnxruntime_mlas.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\mlasi.h(20,10): fatal error C1083: Cannot open include file: 'mlas.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\snchwc.cpp) [D:\roaster-scratch\onnxruntime\build\onnxruntime_mlas.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\mlasi.h(20,10): fatal error C1083: Cannot open include file: 'mlas.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\activate.cpp) [D:\roaster-scratch\onnxruntime\build\onnxruntime_mlas.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\mlasi.h(20,10): fatal error C1083: Cannot open include file: 'mlas.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\logistic.cpp) [D:\roaster-scratch\onnxruntime\build\onnxruntime_mlas.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\mlasi.h(20,10): fatal error C1083: Cannot open include file: 'mlas.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\tanh.cpp) [D:\roaster-scratch\onnxruntime\build\onnxruntime_mlas.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\mlasi.h(20,10): fatal error C1083: Cannot open include file: 'mlas.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\erf.cpp) [D:\roaster-scratch\onnxruntime\build\onnxruntime_mlas.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\intrinsics\avx2\../../mlasi.h(20,10): fatal error C1083: Cannot open include file: 'mlas.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\intrinsics\avx2\qladd_avx2.cpp) [D:\roaster-scratch\onnxruntime\build\onnxruntime_mlas.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\mlasi.h(20,10): fatal error C1083: Cannot open include file: 'mlas.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\qladd.cpp) [D:\roaster-scratch\onnxruntime\build\onnxruntime_mlas.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\mlasi.h(20,10): fatal error C1083: Cannot open include file: 'mlas.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\quantize.cpp) [D:\roaster-scratch\onnxruntime\build\onnxruntime_mlas.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\mlasi.h(20,10): fatal error C1083: Cannot open include file: 'mlas.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\mlas\lib\compute.cpp) [D:\roaster-scratch\onnxruntime\build\onnxruntime_mlas.vcxproj]
  attention_fusion.cc
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\attention_fusion.cc(4,10): fatal error C1083: Cannot open include file: 'core/graph/graph_utils.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
  bias_gelu_fusion.cc
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\bias_gelu_fusion.cc(4,10): fatal error C1083: Cannot open include file: 'core/optimizer/initializer.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
  cast_elimination.cc
  computation_reduction.cc
  constant_folding.cc
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\computation_reduction.cc(4,10): fatal error C1083: Cannot open include file: 'core/common/safeint.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
  conv_activation_fusion.cc
  conv_add_fusion.cc
  conv_bn_fusion.cc
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\constant_folding.cc(4,10): fatal error C1083: Cannot open include file: 'core/optimizer/constant_folding.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
  conv_mul_fusion.cc
  dropout_elimination.cc
  dynamic_quantize_matmul_fusion.cc
  embed_layer_norm_fusion.cc
  expand_elimination.cc
  fast_gelu_fusion.cc
  free_dim_override_transformer.cc
  gelu_approximation.cc
  gelu_fusion.cc
  gemm_activation_fusion.cc
  graph_transformer.cc
  graph_transformer_mgr.cc
  graph_transformer_utils.cc
  identity_elimination.cc
  initializer.cc
  insert_cast_transformer.cc
  layer_norm_fusion.cc
  matmul_add_fusion.cc
  matmul_transpose_fusion.cc
  nchwc_transformer.cc
  optimizer_execution_frame.cc
  relu_clip_fusion.cc
  reshape_fusion.cc
  rule_based_graph_transformer.cc
  shape_to_initializer.cc
  skip_layer_norm_fusion.cc
  slice_elimination.cc
  transformer_memcpy.cc
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\conv_add_fusion.cc(4,10): fatal error C1083: Cannot open include file: 'core/graph/graph_utils.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
  unsqueeze_elimination.cc
  utils.cc
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\conv_bn_fusion.cc(4,10): fatal error C1083: Cannot open include file: 'core/graph/graph_utils.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\conv_mul_fusion.cc(4,10): fatal error C1083: Cannot open include file: 'core/graph/graph_utils.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\embed_layer_norm_fusion.cc(3,10): fatal error C1083: Cannot open include file: 'core/optimizer/initializer.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\fast_gelu_fusion.cc(4,10): fatal error C1083: Cannot open include file: 'core/optimizer/initializer.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\gelu_approximation.cc(4,10): fatal error C1083: Cannot open include file: 'core/optimizer/initializer.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\gemm_activation_fusion.cc(4,10): fatal error C1083: Cannot open include file: 'core/optimizer/initializer.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\gelu_fusion.cc(4,10): fatal error C1083: Cannot open include file: 'core/optimizer/initializer.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\include\onnxruntime\core/optimizer/graph_transformer_utils.h(6,10): fatal error C1083: Cannot open include file: 'gsl/gsl': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\graph_transformer_utils.cc) [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\graph_transformer_mgr.cc(4,10): fatal error C1083: Cannot open include file: 'core/optimizer/graph_transformer_mgr.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\initializer.cc(4,10): fatal error C1083: Cannot open include file: 'core/optimizer/initializer.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\insert_cast_transformer.cc(4,10): fatal error C1083: Cannot open include file: 'core/optimizer/insert_cast_transformer.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\layer_norm_fusion.cc(3,10): fatal error C1083: Cannot open include file: 'core/optimizer/initializer.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\matmul_transpose_fusion.cc(4,10): fatal error C1083: Cannot open include file: 'core/optimizer/initializer.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\matmul_add_fusion.cc(4,10): fatal error C1083: Cannot open include file: 'core/optimizer/initializer.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\relu_clip_fusion.cc(4,10): fatal error C1083: Cannot open include file: 'core/optimizer/relu_clip_fusion.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\reshape_fusion.cc(4,10): fatal error C1083: Cannot open include file: 'core/graph/graph_utils.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\slice_elimination.cc(4,10): fatal error C1083: Cannot open include file: 'core/optimizer/slice_elimination.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\shape_to_initializer.cc(4,10): fatal error C1083: Cannot open include file: 'core/optimizer/shape_to_initializer.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\unsqueeze_elimination.cc(4,10): fatal error C1083: Cannot open include file: 'core/optimizer/unsqueeze_elimination.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\skip_layer_norm_fusion.cc(3,10): fatal error C1083: Cannot open include file: 'core/optimizer/initializer.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\conv_activation_fusion.cc(5,10): fatal error C1083: Cannot open include file: 'core/graph/graph_utils.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\nchwc_transformer.cc(5,10): fatal error C1083: Cannot open include file: 'core/graph/graph_utils.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\include\onnxruntime\core/common/logging/capture.h(7,10): fatal error C1083: Cannot open include file: 'gsl/gsl': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\cast_elimination.cc) [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\include\onnxruntime\core/graph/graph.h(15,10): fatal error C1083: Cannot open include file: 'core/common/path.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\dynamic_quantize_matmul_fusion.cc) [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\include\onnxruntime\core/common/logging/capture.h(7,10): fatal error C1083: Cannot open include file: 'gsl/gsl': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\expand_elimination.cc) [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\include\onnxruntime\core/common/logging/capture.h(7,10): fatal error C1083: Cannot open include file: 'gsl/gsl': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\free_dim_override_transformer.cc) [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\include\onnxruntime\core/common/logging/capture.h(7,10): fatal error C1083: Cannot open include file: 'gsl/gsl': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\dropout_elimination.cc) [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\cmake\external\onnx\onnx/onnx_pb.h(50,10): fatal error C1083: Cannot open include file: 'onnx/onnx-ml.pb.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\utils.cc) [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\include\onnxruntime\core/graph/graph.h(15,10): fatal error C1083: Cannot open include file: 'core/common/path.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\graph_transformer.cc) [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\include\onnxruntime\core/common/logging/capture.h(7,10): fatal error C1083: Cannot open include file: 'gsl/gsl': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\identity_elimination.cc) [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\include\onnxruntime\core/graph/graph.h(15,10): fatal error C1083: Cannot open include file: 'core/common/path.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\rule_based_graph_transformer.cc) [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\include\onnxruntime\core/common/logging/capture.h(7,10): fatal error C1083: Cannot open include file: 'gsl/gsl': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\optimizer_execution_frame.cc) [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
D:\roaster-scratch\onnxruntime\include\onnxruntime\core/common/logging/capture.h(7,10): fatal error C1083: Cannot open include file: 'gsl/gsl': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\optimizer\transformer_memcpy.cc) [D:\roaster-scratch\onnxruntime\build\onnxruntime_optimizer.vcxproj]
  onnxruntime_providers.vcxproj -> D:\roaster-scratch\onnxruntime\build\Release\onnxruntime_providers.lib
  onnxruntime_providers_cuda.vcxproj -> D:\roaster-scratch\onnxruntime\build\Release\onnxruntime_providers_cuda.lib
  onnxruntime_providers_dnnl.vcxproj -> D:\roaster-scratch\onnxruntime\build\Release\onnxruntime_providers_dnnl.dll
  pywrapper.cc
D:\roaster-scratch\onnxruntime\onnxruntime\core\language_interop_ops\pyop\pywrapper.cc(9,10): fatal error C1083: Cannot open include file: 'Python.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_pywrapper.vcxproj]
  IOBinding.cc
D:\roaster-scratch\onnxruntime\onnxruntime\core\session\IOBinding.cc(4,10): fatal error C1083: Cannot open include file: 'core/session/IOBinding.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_session.vcxproj]
  abi_session_options.cc
  custom_ops.cc
  default_cpu_allocator_c_api.cc
  environment.cc
  inference_session.cc
  inference_session_utils.cc
  onnxruntime_c_api.cc
  ort_env.cc
D:\roaster-scratch\onnxruntime\onnxruntime\core\session\inference_session_utils.cc(4,10): fatal error C1083: Cannot open include file: 'core/session/inference_session_utils.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_session.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\session\onnxruntime_c_api.cc(5,10): fatal error C1083: Cannot open include file: 'core/session/allocator_impl.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_session.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\core\session\default_cpu_allocator_c_api.cc(5,10): fatal error C1083: Cannot open include file: 'core/framework/utils.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_session.vcxproj]
D:\roaster-scratch\onnxruntime\cmake\external\onnx\onnx/onnx_pb.h(50,10): fatal error C1083: Cannot open include file: 'onnx/onnx-ml.pb.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\session\abi_session_options.cc) [D:\roaster-scratch\onnxruntime\build\onnxruntime_session.vcxproj]
D:\roaster-scratch\onnxruntime\cmake\external\onnx\onnx/onnx_pb.h(50,10): fatal error C1083: Cannot open include file: 'onnx/onnx-ml.pb.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\session\custom_ops.cc) [D:\roaster-scratch\onnxruntime\build\onnxruntime_session.vcxproj]
D:\roaster-scratch\onnxruntime\cmake\external\onnx\onnx/onnx_pb.h(50,10): fatal error C1083: Cannot open include file: 'onnx/onnx-ml.pb.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\session\inference_session.cc) [D:\roaster-scratch\onnxruntime\build\onnxruntime_session.vcxproj]
D:\roaster-scratch\onnxruntime\include\onnxruntime\core/platform/threadpool.h(24,10): fatal error C1083: Cannot open include file: 'core/platform/env.h': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\session\environment.cc) [D:\roaster-scratch\onnxruntime\build\onnxruntime_session.vcxproj]
D:\roaster-scratch\onnxruntime\include\onnxruntime\core/common/logging/capture.h(7,10): fatal error C1083: Cannot open include file: 'gsl/gsl': No such file or directory (compiling source file D:\roaster-scratch\onnxruntime\onnxruntime\core\session\ort_env.cc) [D:\roaster-scratch\onnxruntime\build\onnxruntime_session.vcxproj]
  gmock.vcxproj -> D:\roaster-scratch\onnxruntime\build\lib\Release\gmock.lib
  gtest.vcxproj -> D:\roaster-scratch\onnxruntime\build\lib\Release\gtest.lib
  compare_ortvalue.cc
  default_providers.cc
  file_util.cc
  temp_dir.cc
  test_allocator.cc
  test_environment.cc
  test_random_seed.cc
D:\roaster-scratch\onnxruntime\onnxruntime\test\util\compare_ortvalue.cc(4,10): fatal error C1083: Cannot open include file: 'test/compare_ortvalue.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_test_utils.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\test\util\temp_dir.cc(4,10): fatal error C1083: Cannot open include file: 'test/util/include/temp_dir.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_test_utils.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\test\util\test_environment.cc(4,10): fatal error C1083: Cannot open include file: 'test/test_environment.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_test_utils.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\test\util\test_random_seed.cc(4,10): fatal error C1083: Cannot open include file: 'test/util/include/test_random_seed.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_test_utils.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\test\util\file_util.cc(1,10): fatal error C1083: Cannot open include file: 'file_util.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_test_utils.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\test\util\default_providers.cc(4,10): fatal error C1083: Cannot open include file: 'default_providers.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_test_utils.vcxproj]
D:\roaster-scratch\onnxruntime\onnxruntime\test\util\test_allocator.cc(4,10): fatal error C1083: Cannot open include file: 'test_allocator.h': No such file or directory [D:\roaster-scratch\onnxruntime\build\onnxruntime_test_utils.vcxproj]
  onnxruntime_util.vcxproj -> D:\roaster-scratch\onnxruntime\build\Release\onnxruntime_util.lib
  re2.vcxproj -> D:\roaster-scratch\onnxruntime\build\external\re2\Release\re2.lib

System information

• OS Platform and Distribution (e.g., Linux Ubuntu 16.04): Windows Server 2019
• ONNX Runtime installed from (source or binary): source
• ONNX Runtime version: 1.4.0
• Python version: 3.8.5
• Visual Studio version (if applicable): 2019
• CUDA/cuDNN version: 11.0/8

Great, now it works!

Description of issue

asix-ax88179 update failed.

% brew upgrade
Updating Homebrew...
==> Casks with `auto_updates` or `version :latest` will not be upgraded
==> Upgrading 1 outdated package:
asix-ax88179 2.16.0 -> 2.17.0
==> Upgrading asix-ax88179
==> Caveats
asix-ax88179 requires a kernel extension to work.
If the installation fails, retry after you enable it in:
  System Preferences → Security & Privacy → General

For more information, refer to vendor documentation or this Apple Technical Note:
  https://developer.apple.com/library/content/technotes/tn2459/_index.html

You must reboot for the installation of asix-ax88179 to take effect.

==> Downloading https://www.asix.com.tw/FrootAttach/driver/AX88179_178A_macOS_10.9_to_10.15_Driver_Installer_v2.17.0.zip
Already downloaded: /Users/xkszltl/Library/Caches/Homebrew/downloads/b135a7bb063e70f2987fb3d1ac34931eaf23412c1d2e1803c99884daef9895fc--AX88179_178A_macOS_10.9_to_10.15_Driver_Installer_v2.17.0.zip
==> Verifying SHA-256 checksum for Cask 'asix-ax88179'.
==> Running uninstall script /usr/local/Caskroom/asix-ax88179/2.16.0/AX88179_178A_Uninstall_v150.command
==> Purging files for version 2.17.0 of Cask asix-ax88179
Error: asix-ax88179: uninstall script /usr/local/Caskroom/asix-ax88179/2.16.0/AX88179_178A_Uninstall_v150.command does not exist.

The path to uninstallation script is wrong.

% sudo ls /usr/local/Caskroom/asix-ax88179/2.16.0
AX88179_178A_Uninstall_v1.6.0.command	AX88179_178A_v2.16.0.pkg		readme.txt

TRT is installed. Scroll down and you'll see fatal error C1083: Cannot open include file: 'mlas.h'. So most likely -I is broken.

Start to get error when building pytorch with RocksDB today. It works when using 6.4.6, but 6.5.2 doesn't work.

Here's what I got:

#9 537.6 CMake Error at modules/rocksdb/CMakeLists.txt:58 (add_library):
#9 537.6   Target "caffe2_rocksdb" links to target "snappy::snappy" but the target was
#9 537.6   not found.  Perhaps a find_package() call is missing for an IMPORTED
#9 537.6   target, or an ALIAS target is missing?
#9 537.6
#9 537.6
#9 537.6 CMake Error at modules/rocksdb/CMakeLists.txt:58 (add_library):
#9 537.6   Target "caffe2_rocksdb" links to target "lz4::lz4" but the target was not
#9 537.6   found.  Perhaps a find_package() call is missing for an IMPORTED target, or
#9 537.6   an ALIAS target is missing?
#9 537.6
#9 537.6
#9 537.6 CMake Error at modules/rocksdb/CMakeLists.txt:58 (add_library):
#9 537.6   Target "caffe2_rocksdb" links to target "zstd::zstd" but the target was not
#9 537.6   found.  Perhaps a find_package() call is missing for an IMPORTED target, or
#9 537.6   an ALIAS target is missing?
#9 537.6
#9 537.6
#9 537.6 CMake Error at modules/rocksdb/CMakeLists.txt:58 (add_library):
#9 537.6   Target "caffe2_rocksdb" links to target "NUMA::NUMA" but the target was not
#9 537.6   found.  Perhaps a find_package() call is missing for an IMPORTED target, or
#9 537.6   an ALIAS target is missing?

Version: CentOS 7 / Ubuntu 18.04 CMake 3.16.1 + Ninja + gcc-8 PyTorch: master branch

Issue was also posted to pytorch repo: https://github.com/pytorch/pytorch/issues/31264

Close since all 3 PR are in latest release.

For backward, it's the same reason. We were doing inferencing at that time, so not sure about those things outside of our code coverage.

This is to fix an error we found in our model, so it's tested there. Regarding other attributes, I remember there're definite some of them. But it's too long ago and I don't remember those details. All I remember is "they didn't cause trouble in our model, so I'd rather not touch them to make sure the correctness of my PR".

Yes....Windows defender still kicks in....

PS C:\Users\tolia\Projects\roaster\win> .\setup.ps1 boost
Re-entry "C:\Users\tolia\Projects\roaster\win\setup.ps1" with args "boost" for protection.
rm : There is a mismatch between the tag specified in the request and the tag present in the reparse point
At C:\Users\tolia\Projects\roaster\win\pkgs\env\scratch.ps1:9 char:1
+ rm -Force -Recurse -ErrorAction SilentlyContinue -WarningAction Silen ...
+ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    + CategoryInfo          : NotSpecified: (:) [Remove-Item], Win32Exception
    + FullyQualifiedErrorId : System.ComponentModel.Win32Exception,Microsoft.PowerShell.Commands.RemoveItemCommand

(or maybe Windows defender somehow decide to scan it regradless)
